How Do Shoe Grounders Work?

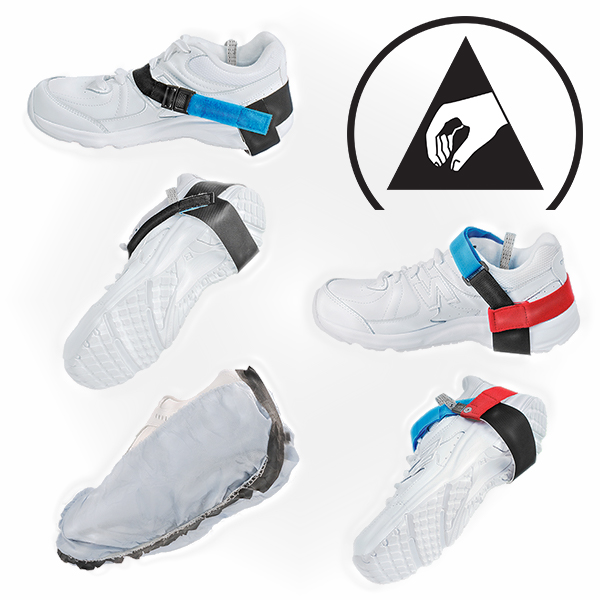

ESD Grounding Methods for Shoe Grounders

3 min read

Add as Preferred Source
Prioritize this site in Google AI Overviews & Search results
Authored by Doug Wagner | Elimstat.com • Published January 4, 2019 • Updated October 18, 2023

The short answer

Tuck the ribbon into the sock so skin contacts the grounder, and stand on a grounded floor or ESD mat.

How to ground a person with shoe grounders

  1. Bypass the shoe

    Insulative shoes such as tennis shoes or other rubber footwear let charge accumulate. Tuck the silver ribbon into the sock so charge on the skin has a path through the grounder into the floor.

  2. Use a carbon heel on a grounded surface

    A heel grounder is a shoe grounder with a conductive black carbon rubber heel and a silver thread into the sock. The heel has to meet a grounded surface: dissipative or conductive floor paint, or ESD matting.

  3. Do not stand on carpet or wood

    Carpet and wood are insulators. Even on conductive flooring, wear the grounders so the shoes are not an insulating barrier. A mat roll used as a floor runner, or a conductive mat, can be tied to an outlet with a mat ground.

  4. Test the grounder

    TR53 testers are by default set to look for less than 1 gigaohm (1 × 10^9 ohms). A reading below that means the grounder is at least static dissipative. Test regularly when many people work near electronics.

Shop shoe grounding

Answer: Shoe grounders use the conductivity of carbon (the black part) to bring electrons to the ground.

Static electrons can sit on the surface of our skin. The charge can then accumulate on us with greater mass if we are electrically isolated from the ground underneath our feet. Charge accumulates when we are wearing shoes- like tennis shoes or other rubber-based footwear- that are insulative.

Insulators can hold multiple positive and negative charges in pockets across their surface for hours. The safest way to ensure that static on you is reaching the ground is to bypass your shoes by tucking the silver ribbon into your sock.

Wearing a shoe grounder establishes a path for electricity to travel directly from your skin’s surface through the shoe grounder, and into the floor.

Wearing a shoe grounder ensures that you are electrically bonded to the floor.

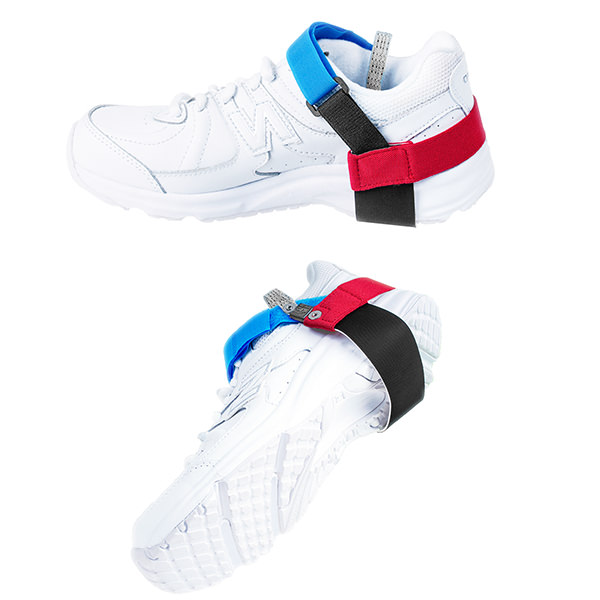

1. Heel Grounders

Heel Grounders are a specific type of shoe grounder that use a conductive black carbon rubber heel to ground you.

Connected to the rubber heel is a conductive silver thread that tucks into your sock. The thread draws static electricity from your skin’s surface so that it grounds static clinging to you.

The way this works is that as the black carbon-loaded heel ground makes contact with the floor, the electricity that was static on you is discharged into the grounded surface

2. Grounding Floors

If you are worried about static electricity, you should not be working on electronics while standing on insulative materials like carpets or wood floors. However, even if you are using conductive flooring, you should be wearing shoe grounders so that your shoes are not an insulative barrier that stops the static on your skin and clothes from discharging into the floor.

Keep in mind that materials like wood and carpets are insulators. Wood floors and carpets can easily cause us to hold static on our skin and clothes.

However, this means you should be wearing the heel grounder while standing on a grounded surface- either a floor that has been treated with static dissipative or conductive paint or a floor padded with ESD Safe matting. This way, you know the surface is not stopping the static on you from dissipating into the ground.

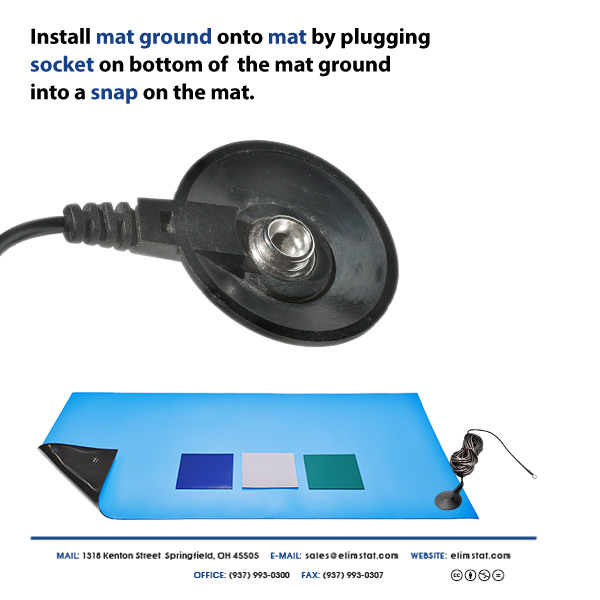

If you use matting, it can be either mat roll laid out as “floor runner” or a conductive mat. These mats can be connected by mat ground to an electrical outlet.

3. Testing Shoe Grounders

Shoe grounders should be worn and tested regularly if many people are working near electronics frequently. A charge can build up on clothes, skin, the floor, and tables causing unexplained machine shutdowns and device failures. One study[1] conducted in the 1980s found that as much as 75% of their unknown device failures were attributable to ESD.

To test shoe grounders, you would typically use a tester with a single metal plate.

ESD test equipment, like the combo tester, is itself typically setup to meet the requirements of ESD TR53.

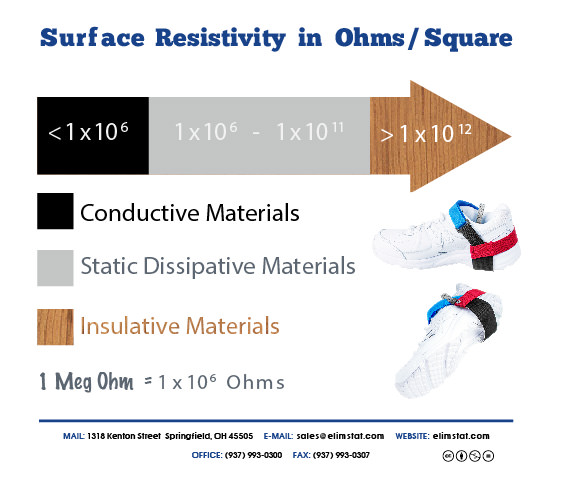

Based on TR53, most testers are by default set up to look for a reading from the shoe grounder of less than one gigaohm ( 1 x 10e9 (1 billion or 1,000,000,000)ohms resistance). A reading below one gigaohm guarantees that the shoe grounder is, at a minimum, static dissipative.

Notes

1. Western Electric North Andover Works (1983). “ESD – How Often Does It happen?” G.T. Dangelmayer, EOS-5, pp.1-5, 1983.

Questions this guide answers

How does a shoe grounder move charge?

The carbon, the black part, conducts electrons to the ground. The silver ribbon in the sock reaches the skin, and the heel contacts the floor.

What floor can it discharge into?

A floor treated with static-dissipative or conductive paint, or a floor covered with ESD matting. Carpet and wood hold charge. The mat can be a floor-runner roll or a conductive mat grounded to an outlet.

What test limit does the article cite?

Based on TR53, most testers look for less than 1 × 10^9 ohms. Below that, the grounder is at least static dissipative.

Why test often?

Charge can build on clothes, skin, the floor, and tables. The article cites a 1983 Western Electric study that attributed up to 75 percent of unknown device failures to ESD.
