Prices
| Sizes | Qty 1-9 | Qty 10+ |
|---|---|---|
| 24" x 50' | $443.78 USD | $406.80 USD |
| 30" x 50' | $554.72 USD | $508.49 USD |
| 36" x 50' | $665.66 USD | $610.19 USD |
| 48" x 50' | $887.54 USD | $813.57 USD |

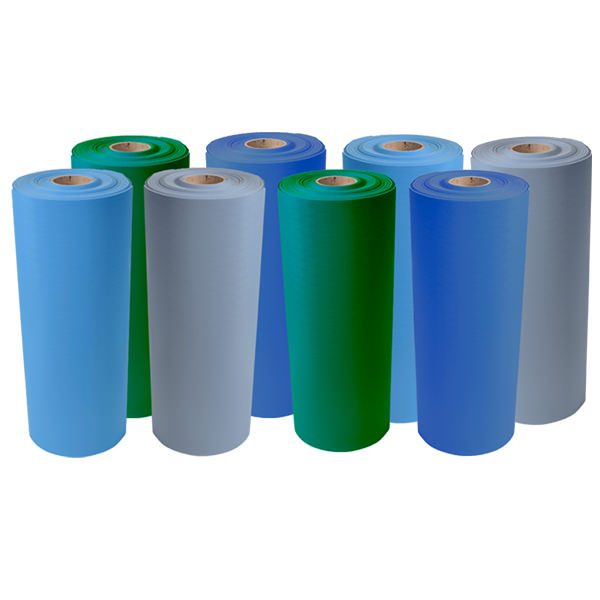

• 2-layer static dissipative rubber matting for ESD grounding in ANSI / ESD S20.20 compliant work areas for static control.
ANSI / ESD S4.1 and S7.1 compliant for cart, floor, rack, shelf, table, and tray liner uses.
| Sizes | Qty 1-9 | Qty 10+ |
|---|---|---|
| 24" x 50' | $443.78 USD | $406.80 USD |
| 30" x 50' | $554.72 USD | $508.49 USD |
| 36" x 50' | $665.66 USD | $610.19 USD |
| 48" x 50' | $887.54 USD | $813.57 USD |
| Sizes | Qty 1-9 | Qty 10+ |
|---|---|---|
| 24" x 50' | $443.78 USD | $406.80 USD |
| 30" x 50' | $554.72 USD | $508.49 USD |
| 36" x 50' | $665.66 USD | $610.19 USD |
| 48" x 50' | $887.54 USD | $813.57 USD |
► Meets ANSI / ESD STM 4.1 Standard using FTMS 101C Method 4046.
► Lead-Free. Recyclable. Meets European Union (EU) Restriction of Hazardous Substances Directive (RoHS) regulating the reuse of products used in electrical and electronic equipment.
| Properties | Units | Typical alues | Test Method |
|---|---|---|---|
| Material | - | Nitrile Butadiene Rubber / Carbon | - |
| Thickness | Inches | .08 | ASTM D-2103 |
| Thickness | Millimetres | 2 | ASTM D-2103 |
| Tensile Strength • Top Layer | kg / sq. cm | > 120 | ASTM D-412 |
| Tensile Strength • Bottom Layer | kg / sq. cm | > 160 | ASTM D-412 |
| Tear Strength • Top Layer | kg / sq. cm | > 90 | ASTM D-412 |
| Tear Strength • Bottom Layer | kg / sq. cm | > 100 | ASTM D-412 |
| Elongation • Top Layer | % | 350 | ASTM D-412 |
| Elongation • Bottom Layer | % | 250 | ASTM D-412 |
| Hardness • Top Layer | Shore A | 50 | ASTM D-2240 |
| Hardness • Bottom Layer | Shore A | 60 | ASTM D-2240 |
| Gravity • Top Layer | - | 1.3 | ASTM D-792 |
| Gravity • Bottom Layer | - | 1.4 | ASTM D-792 |
| ESD Surface Resistance • Top Layer | ohms / square | < 109 | ASTM D-257 |
| ESD Surface Resistance • Bottom Layer | ohms / square | < 105 | ASTM D-257 |
| Volume Resistivity • Top Layer | ohms / square | < 108 | ASTM D-257 |
| Volume Resistivity • Bottom Layer | ohms / square | < 104 | ASTM D-257 |
| Static Decay | seconds | < 0.01 | EIA-541 |
| Temperature Tolerance | Fahrenheit / Celsius | 187F / 86C | - |

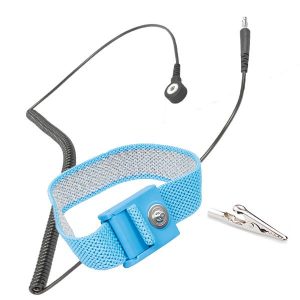

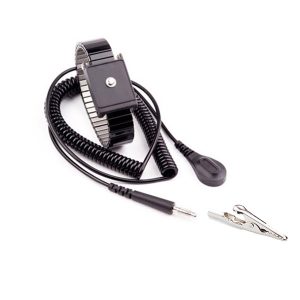

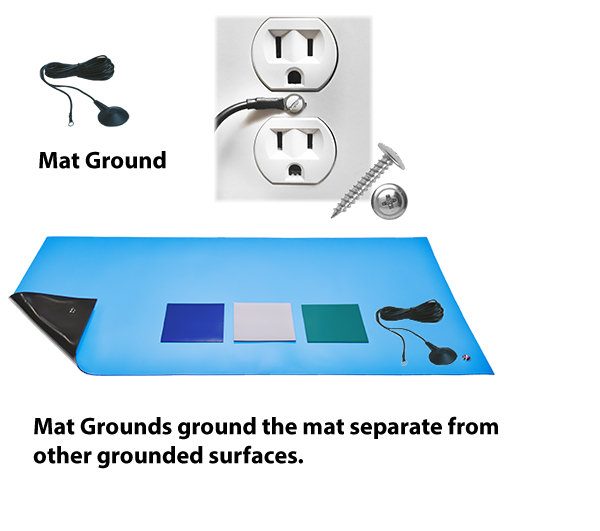

• The grounding cables should be common point grounds to connect wrist straps to your workstation or mat grounds to bond the roll separately onto the floor.

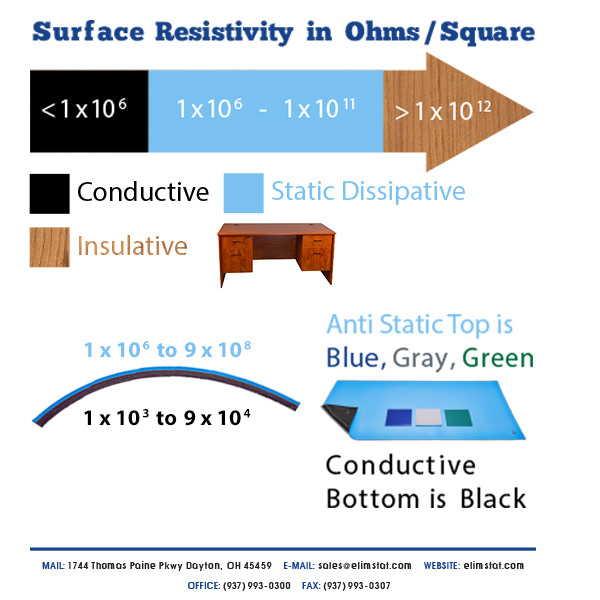

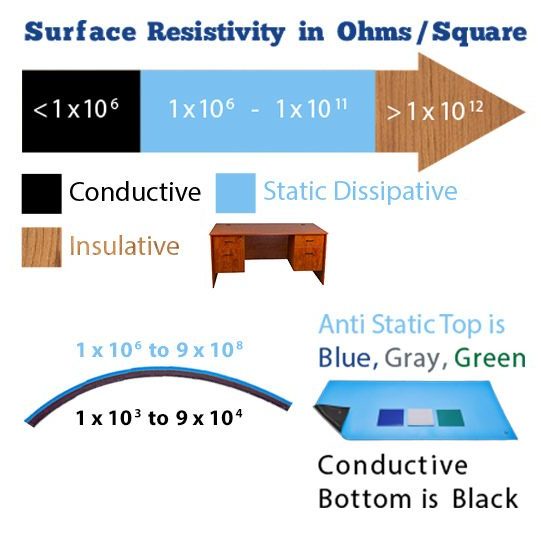

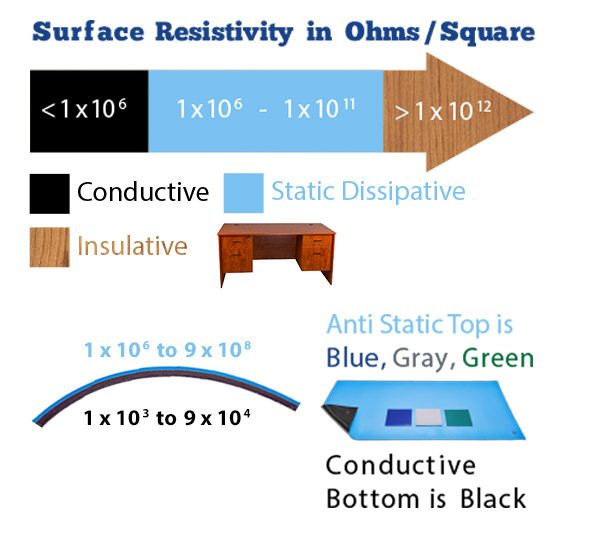

The top anti static side of the mat collects static off of hands, feet, tools, and equipment laid on top of it at a static dissipative rate, (1 x 106 to 9 x 108 ohms / square).
The bottom of the mat then conducts static to ground at a conductive rate, (1 x 103 to 9 x 104 ohms / square).

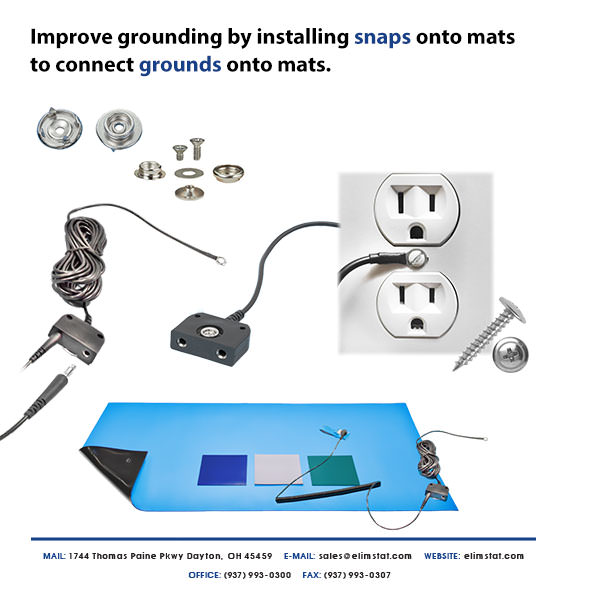

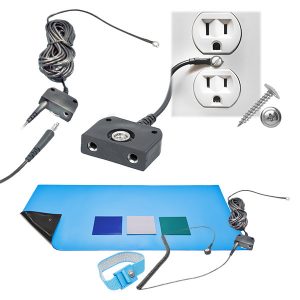

If the mat lies on an insulating surface, such as a wood bench, bond it with snaps and a grounding cable to the workstation common point ground. Connect that common point ground to the equipment grounding conductor. Use that conductor as the ESD ground. Do not use the outlet’s energized contacts as a ground.

Several grounding cables may meet at the same common point ground. They should not be daisy-chained. Connect each cable directly to the common point ground.
The equipment grounding conductor holds the mat and the other bonded parts of the workstation at the same potential.

To satisfy the ANSI / ESD S4.1 Worksurfaces – Resistance Measurements test standard the top static dissipative part of the mat was measured using resistance-to-groundable point and resistance point-to-point tests.
ANSI / ESD S4.1 guidelines at section 8.0 recommend resistance-to-groundable point (RTG) tests should find the top surface of grounded mats measure ESD resistance between 1 x 106 and 1 x 109 ohms.
Resistance point-to-point (also known as top-to-top or RTT) tests should measure the ESD resistance of the top surface of the mats at greater than or equal to 1 x 106 ohms.
The linked qualification report covers 12% and 48% relative humidity, with readings under 1.0×109 ohms.

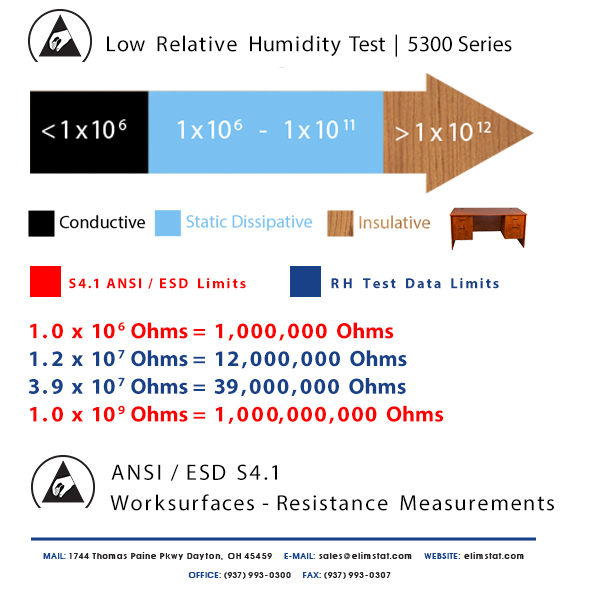

In our low relative humidity test, the sample with the least resistance measured 1.2 x 107 ohms.
The mat sample with the highest resistance measured 3.9 x 107 ohms / square.

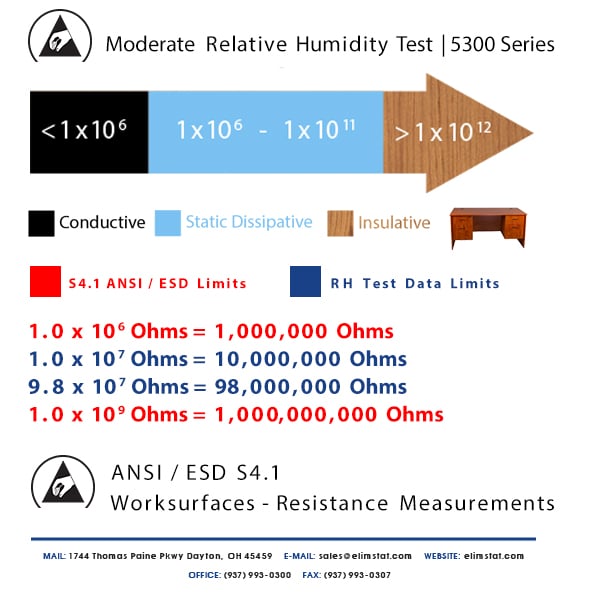

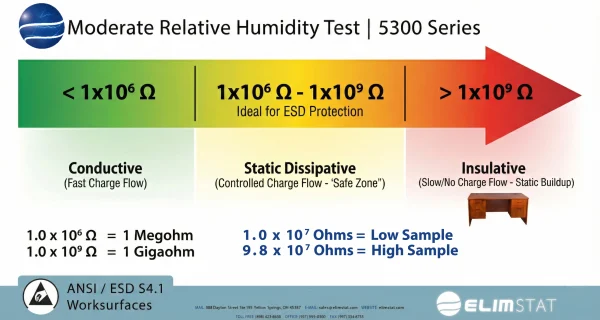

In our moderate relative humidity test, the sample with the least resistance measured 1.0 x 107 ohms.
The mat sample with the highest resistance measured 9.8 x 107 ohms.
